INTERDUCTION
The ITD Full IP69K panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical processing, pharmaceuticals, biotechnology process manufacturing and other industrial applications. This waterproof IP69K PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP69k sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration, high-pressure water jets and steam cleaning while meeting required EMI/RFI resistance compliance.
FEATURES
•Robust stainless steel(304) enclosure, sealed M12 metal I/Os from particles, water, and corrosive agents
•IP69K fully sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged stainless steel enclosure design with high EMC, fanless design and flat surface with easy-to-clean
•ARM based board built-in or Windows-based PC integrated
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance
OPTIONALS
• DC 24V, DC9-36V, AC100-240V input
• High Brightness, Auto-Dimming
• Resistive Touch, AR/AG/AF Tempered Glass, Optical Bonding
• WIFI, 4G/5G, Bluetooth, GPS, Speakers
• VESA Mount, Yoke Mount
• Stainless Steel 316L
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 10.1” 16:10 |
| Active Area/ Pixel Pitch | 216.96(W) × 135.6(H)/0.1695 × 0.1695mm |
| Native Resolution/ Colors | 1280 × 800 /16.7M |
| Brightness/ Contrast | 350cd/㎡(500~1000cd/㎡optional)/800:1 |
| Response Time/ Viewing Angle(Typical) | 25ms/85/85/85/85 |
| Light Source | LED Backlight with 50000Hours’Lifetime |
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz
(RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900//J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional | Dual Channel, DDR3 1333/1600MHz Memory,
Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
DDR4 SODIMM ×2 (8th~11th gen.) |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1×MSATA, 1×SATA
1×M.2 (not available for J1900) Default to 64GB SSD | 1×MSATA, 1×SATA
1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
Default
Waterproof M12
I/O | 2 × USB, 1 × RJ45, 1 × DC
More Waterproof I/Os optional
(1 × TF Card Slot Support 8~128GB) | 2 × USB, 1 × COM, 1 × RJ45, 1 × DC
More Waterproof I/Os optional | 2 × USB, 1 × COM, 1 × RJ45, 1 × DC
More Waterproof I/Os optional |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
|
|

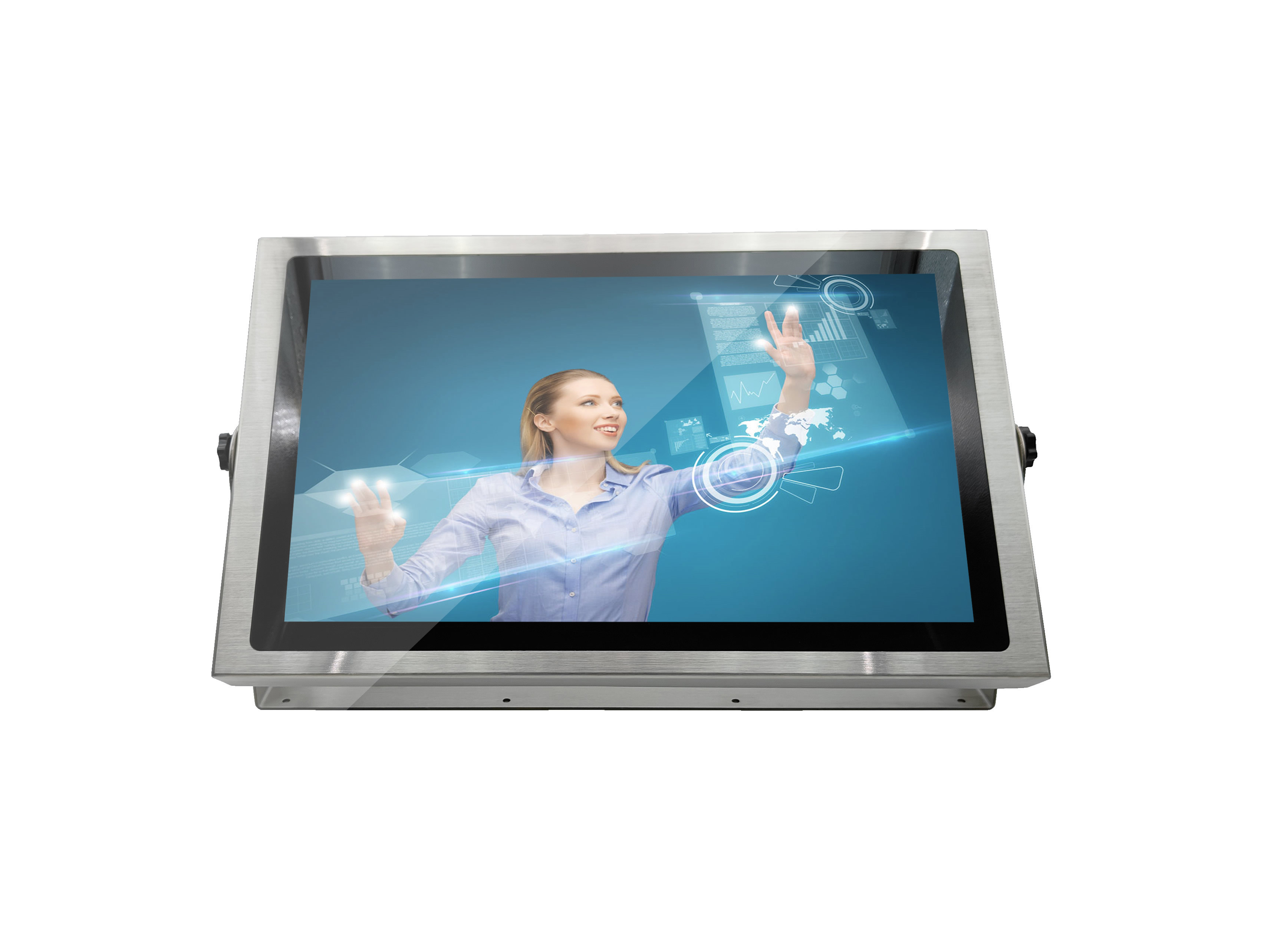

10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel Images
|
