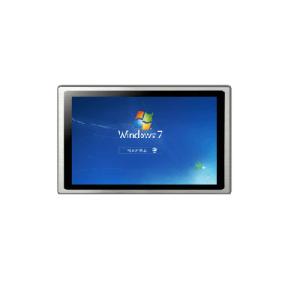

VESA 15W 300nits Industrial Lcd Touch Monitor DC9-36V For Vehicles

  • 1
  • 2
  • 3

Brand Name : ITD/OEM

Model Number : ITD156PMT5X1

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 15-20 working days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

Size : 15.6"

Contrast : 800:1

Viewing Angles : 85/85/85/85

Brightness : 300nits

Inputs : VGA, DVI HDMI inputs

Touch Screen : PCAP Touch, resistive touch

USB Port : USB A or B

IP Rate : IP65 front

Housing Material : Aluminum Front Bezel, Steel Chassis

Mounting : Panel Mounting, VESA Mounting

Lifetime : 50000hours

Price : TBA

Contact Now

industrial lcd touch screen monitor FHD HDMI input DC9-36V for vehicles
ITD 15.6” ITD156PMT5X1 is an industrial LCD display (panel mount type), high brightness for sunlight readable application. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.

BASIC PARAMETERS

2. 1 General

Article 15.6” Flat Bezel Panel Mount LCD Monitor
IP IP65(for front panel only)
Cut-Out Dimensions 404×253mm
Aluminum Front Bezel Thickness 3mm (6mm, 10mm optional)
Weight(N.W/G.W) 6.5Kg / 6.8Kg (Approx.)
LCD Type 15.6＂Active matrix TFT-LCD
Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1920×1080@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Input DC 12V Power Plug; DC 9-36V input optional
Power Consumption 15W
Mount Interface

1)VESA 75×75/100×100mm

2)Panel Mounting via Clamps
Regular Warranty 1 Year for TFT panels; 2 Years for others.
Agency Approval FCC,CE,RoHS Certified
Order Information 15.6” Flat Bezel 3mm Panel Mount Monitor with PCAP Touch/ITD156PMT5X31
15.6” Flat Bezel 3mm Panel Mount Monitor with Tempered Glass/ITD156PMG1X31
15.6” Flat Bezel 3mm Panel Mount Monitor with Resistive Touch/ITD156PMT1X31
15.6” Flat Bezel 10mm Panel Mount Monitor with PCAP Touch/ITD156PMT5X1
15.6” Flat Bezel 10mm Panel Mount Monitor with Tempered Glass/ITD156PMG1X1
15.6” Flat Bezel 10mm Panel Mount Monitor with Resistive Touch/ITD156PMT1X1

2. 2 LCD Specification

Active Area(mm) 344.16(H)x 193.59(V)
Resolution 1920×1080
Pixel Pitch(mm) 0.17925×0.17925
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (L/R/T/B) 85°/85°/85°/85°
Contrast 800:1
Luminance(cd/m2) 300
Response Time(Rising/Falling) 30ms
Support Color 262K
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

2.3.1 Projected Capacitive Touch Screen

Type Projected Capacitive Touch Screen
Surface Hardness 7H
Light Transmission 85%±5%
Touch Life Cycle 50 million times
Touch Response time 5ms
Touch System Interface USB A type (USB B type optional)
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Mac, Android

2.3.1 5 Wires Resistive Touch Screen

Type 5 Wires Resistive Touch Screen
Surface Hardness 3H
Surface Treatment Anti-Glare
Light Transmission ≥78%
Finger Touch Life 35 million times
Touch Response time ≤15ms
Touch System Interface USB B type (A type optional)
Operating System Support Drivers for Windows CE/XP/7/8/10,Linux, Mac, Android

2.4 External AC Power Adapter

Output 12V DC/4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10～60°C (-20～70°C optional)
Storage Temp. -20～70°C
Operating RH: 10%～90%
Storage RH: 10%～90%
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis (optional)
Anti-Shock 15G, 15ms Duration (optional)


Applications:

Industrial Automation

Oil & Gas

Marine

Transport and Ticketing

Banking Automation

Medical

IoT&AI
