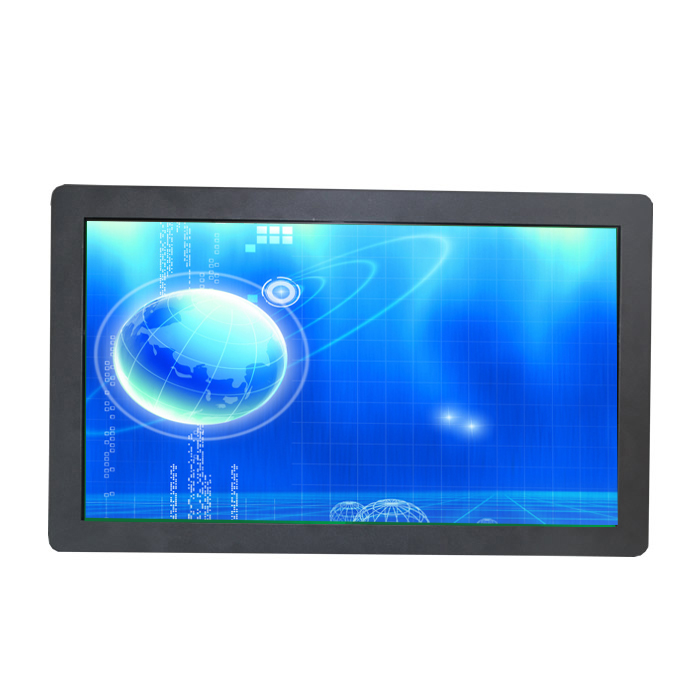

24 inch industrial LCD touch monitor displays with VGA,DVI,HDMI input for industrial use, koisk
ITD industrial chassis monitor LCD displays are fully-integrated, commercially off-the-shelf units that combine high-performance technology, in industrial-grade LCD flat panels, with sleek and flush mount IP54 chassis front surface industrial design. ITD industrial monitor LCD displays provide reliability, durability, and expected longer product life.
BENEFITES
- Compliant with major safety regulations
- Perfect for kiosk, cabinets, equipment and instrument drop-in designs
- Superior viewing angles, contrast ratio and brightness
- Robust CNC milled open frame enclosure
- Open Frame Side Mounting, VESA Mounting, Rear Mounting
- Unique design accounts for heat ventilation
- Durable Touchscreen options
- DVI, Composite and BNC video input options
| Chassis LCD Monitor |
| Model Name | ITD24CMN1M1 |
| IP Rating | N/A |
| LCD Panel |
| Screen Diagonal (Inch) | 24” |
| Display Active Screen Size (cm) | 531.36(H)×298.89(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
| Touch Panel |
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Input / Output |
| Video Input | 1 × VGA |
| 1 × DVI-I |
| 1 × HDMI |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
| Operation |
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
| Power |
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 35W |
| Order Information |
| 24”Chassis LCD Monitor with IR Touch | ITD24CMT201 |
| 24”Chassis LCD Monitor with SAW Touch | ITD24CMT301 |
| 24”Chassis LCD Monitor with PCAP Touch | ITD24CMT501 |
| 24”Chassis LCD Monitor with Tempered Glass | ITD24CMG101 |
